- Clamping force (KN):5500
- Opening stroke(mm): 860
- Space between tie bars(H×V)(mm):886*820
- Max. mold height(mm):850
- Min. mold height(mm):350

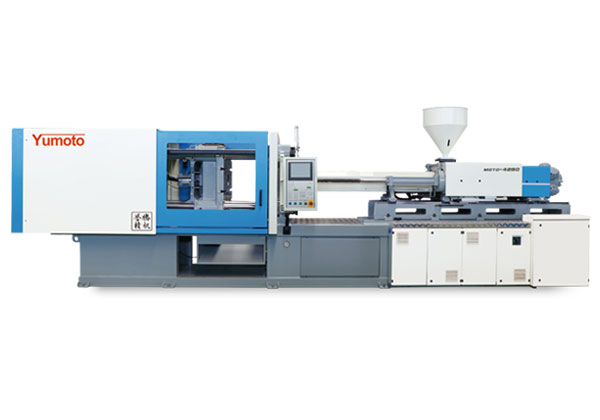

| Model No | MOTO550-PET/D95 | ||
| Description | Unit |
|
|

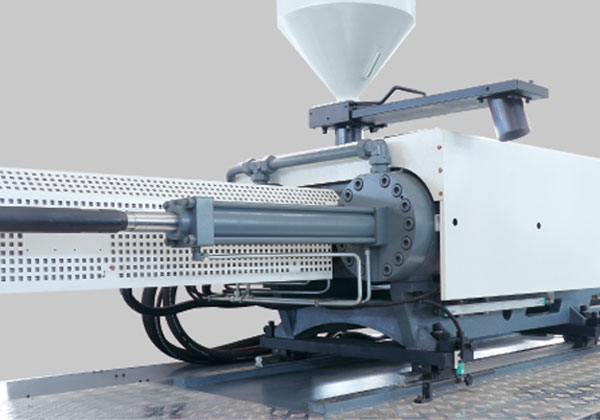

| Injection Unit | Screw diameter | mm | 95 |
| Screw L:D ratio | L/D | 25 | |
| Shot volume | cm3 | 3152 | |
| Shot weight (PET) | g | 3404 | |
| oz | 120 | ||
| Injection pressure | Bar | 1340 | |
| Injection rate | cm^3/s | 666 | |
| Max. screw speed | r/min | 94 | |
|
|
|||

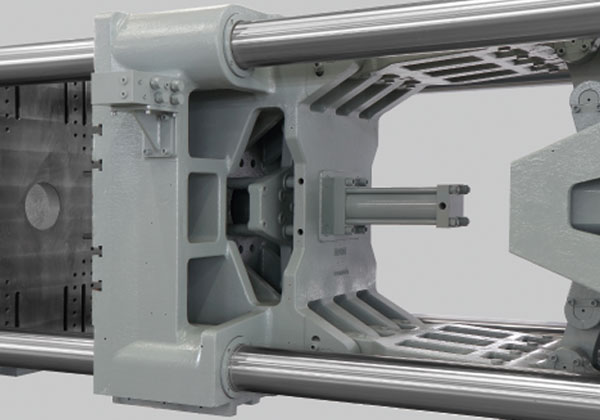

| Clamping Unit | Clamping force | KN | 5500 |
| Opening stroke | mm | 860 | |
| Tie-bar diameter | mm | 140 | |
| Space between tie bars (H XV) | mm | 886x820 | |
| Max. mold height | mm | 850 | |
| Min. mold height | mm | 350 | |
| Ejector stroke | mm | 250 | |
| Ejector force | KN | 133 | |
|
|
|||
| Others | Pump motor power | kw | 65.9 |
| Heating capacity | kw | 55 | |
| Oil tank capacity | L | 450 | |
| Machine dimensions (L*W*H) | m | 9.7x2.2x2.3 | |
| Machine weight | t | 22 | |
