- Clamping force (KN):2800
- Opening stroke(mm): 560
- Space between tie bars(H×V)(mm):630*580
- Max. mold height(mm):650
- Min. mold height(mm):220

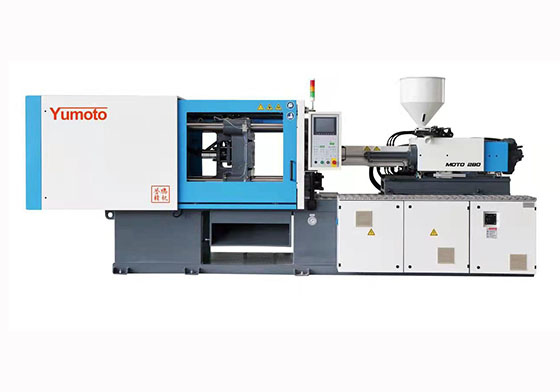

| Model No | MOT0280-PET/D80 | ||
| Description | Unit |
|
|

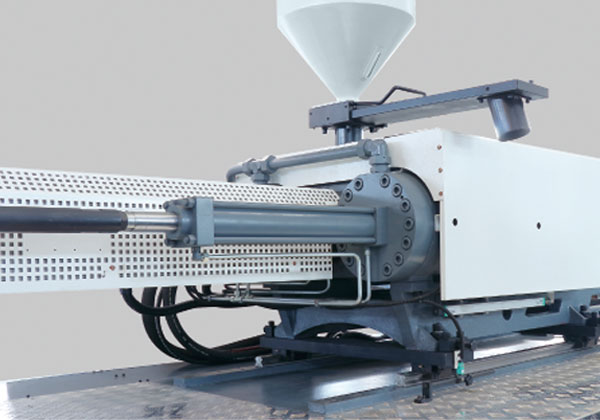

| Injection Unit | Screw diameter | mm | 80 |
| Screw L:D ratio | L/D | 25 | |
| Shot volume | cm3 | 1759 | |
| Shot weight (PET) | g | 1900 | |
| oz | 67.0 | ||
| Injection pressure | Bar | 1289 | |
| Injection rate | cm^3/s | 482 | |
| Max. screw speed | r/min | 125 | |
|
|
|||

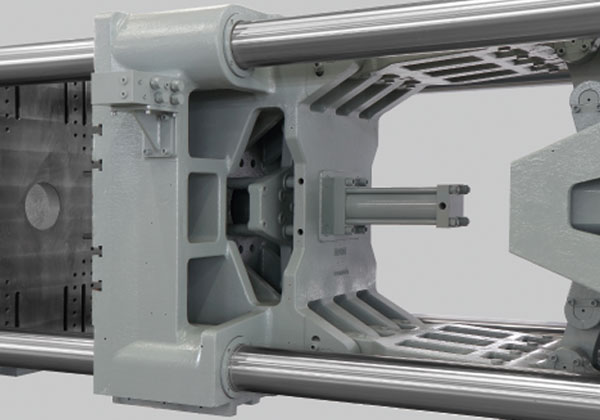

| Clamping Unit | Clamping force | KN | 2800 |
| Opening stroke | mm | 560 | |
| Tie-bar diameter | mm | 100 | |
| Space between tie bars (H XV) | mm | 630x580 | |
| Max. mold height | mm | 650 | |
| Min. mold height | mm | 220 | |
| Ejector stroke | mm | 140 | |
| Ejector force | KN | 133 | |
|
|
|||
| Others | Pump motor power | kw | 39.4 |
| Heating capacity | kw | 36.6 | |
| Oil tank capacity | L | 380 | |
| Machine dimensions (L*W*H) | m | 7.1x1.8x2.3 | |
| Machine weight | t | 11 | |
