- Clamping force (KN):4500
- Opening stroke(mm): 760
- Space between tie bars(H×V)(mm):780*730
- Max. mold height(mm):760
- Min. mold height(mm):320

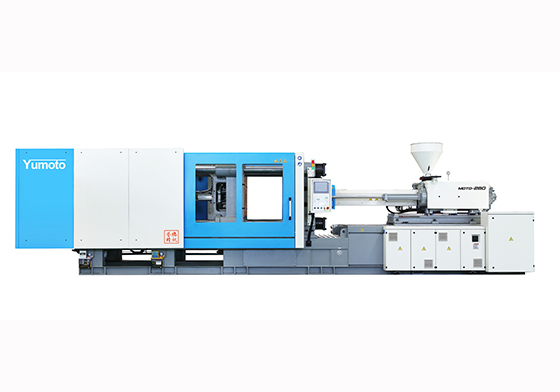

| Model No | MOT0450-PET/D90 | ||
| Description | Unit |
|
|

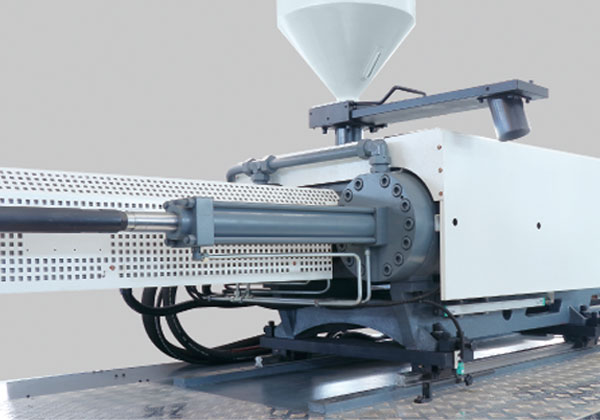

| Injection Unit | Screw diameter | mm | 90 |
| Screw L:D ratio | L/D | 25 | |
| Shot volume | cm3 | 3493 | |
| Shot weight (PET) | g | 3772 | |
| oz | 133 | ||
| Injection pressure | Bar | 1249 | |
| Injection rate | cm^3/s | 502 | |
| Max. screw speed | r/min | 57 | |
|
|
|||

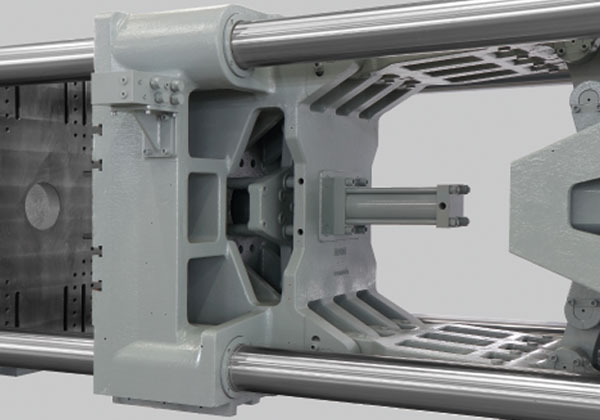

| Clamping Unit | Clamping force | KN | 4500 |
| Opening stroke | mm | 760 | |
| Tie-bar diameter | mm | 135 | |
| Space between tie bars (H XV) | mm | 780x730 | |
| Max. mold height | mm | 760 | |
| Min. mold height | mm | 320 | |
| Ejector stroke | mm | 160 | |
| Ejector force | KN | 133 | |
|
|
|||
| Others | Pump motor power | kw | 50.2 |
| Heating capacity | kw | 48.6 | |
| Oil tank capacity | L | 450 | |
| Machine dimensions (L*W*H) | m | 8.5x2.1x2.5 | |
| Machine weight | t | 17 | |
