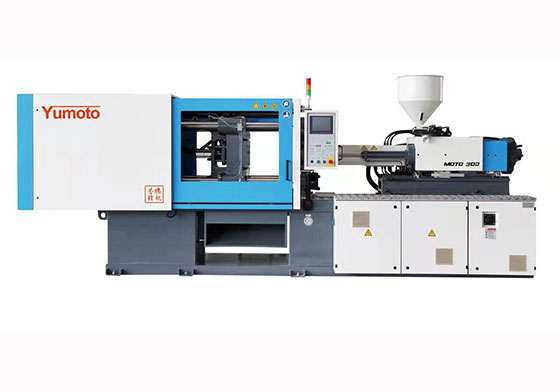

300 Ton Injection Molding Machine

- Clamping force (KN):3000

- Opening stroke(mm): 590

- Space between tie-bars(H×V)(mm):680*630

- Max.mold height(mm):680

- Min mold height (mm):250

Download PDF Contact Us

Applications:

Model No			MOTO-300
Description		Unit	1800
Injection Unit	Screw Diameter	mm	60	65	70
	Screw L/D Ratio	L/D	21.6	20	18.5
	Shot Size (Theoretical)	cm³	848	995	1155
	Shot Weight (Ps)	g	772	906	1051
	Injection Rate	g/s	225	265	307
	Injection Pressure	Mpa	213	181	156
	Screw Speed	r/min	0-170

Clamping Unit	Clamping Force	KN	3000
	Opening Stroke	mm	590
	Space Between Tie-bars(H×V)	mm	680*630
	Max.mold Height	mm	680
	Min Mold Height	mm	250
	Ejector Stroke	mm	160
	Ejector Force	KN	70

Others	Pump Motor Power	kw	37
	Heater Power	kw	25
	Machine Dimensions (LxWxH)	m	7.01.92.0
	Machine Weight	t	9.2
	Hopper Capacity	kg	50
