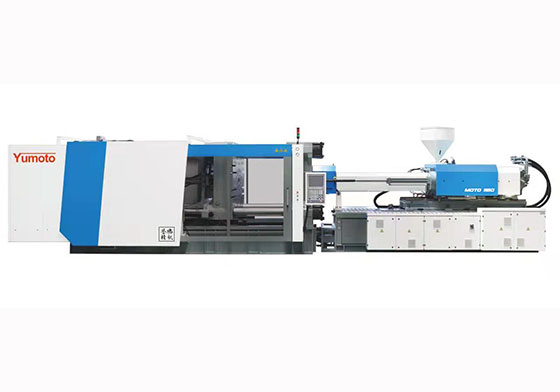

1150 Ton Injection Molding Machine

- Clamping force (KN):11500

- Opening stroke(mm): 1230

- Space between tie-bars(H×V)(mm):1230*1180

- Max.mold height(mm):1200

- Min mold height (mm):500

Download PDF Contact Us

Applications:

Model No MOTO-1150
Description Unit 8900
Injection Unit Screw Diameter mm 100 110 120 130
Screw L/D Ratio L/D 25 23 21 21
Shot Size (Theoretical) cm3 4163 5037 5994 7035
Shot Weight (Ps) g 3788 4584 5455 6402
Injection Rate g/s 601 728 866 1016
Injection Pressure Mpa 212 175 147 125
Screw Speed r/min 0-95

Clamping Unit Clamping Force KN 11500
Opening Stroke mm 1230
Space between Tie-bars(H×V) mm 1230*1180
Max.mold Height mm 1200
Min Mold Heigh mm 500
Ejector Stroke mm 320
Ejector Force KN 215

Others Pump Motor Power kw 50.2+50.2
Heater Power kw 70
Machine Dimensions (LxWxH) m 12.2*2.8*2.7
Machine Weight t 55
Hopper Capacity kg 100
