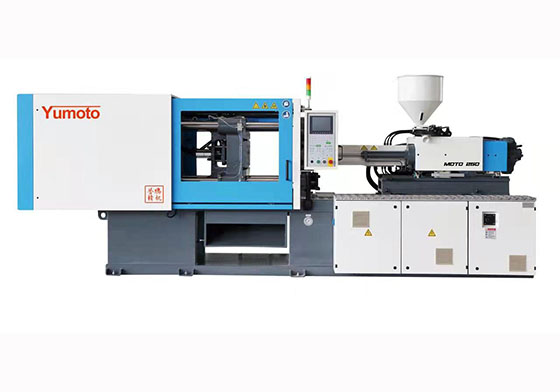

250 Ton Injection Molding Machine

- Clamping force (KN):2500

- Opening stroke(mm): 540

- Space between tie-bars(H×V)(mm):580*580

- Max.mold height(mm):580

- Min mold height (mm):220

Download PDF Contact Us

Applications:

Model No			MOTO-250
Description		Unit	1150
Injection Unit	Screw Diameter	mm	50	55	60
	Screw L/D Ratio	L/D	22	20	18.3
	Shot Size (Theoretical)	cm³	511	618	735
	Shot Weight (Ps)	g	405	562	669
	Injection Rate	g/s	171	207	246
	Injection Pressure	Mpa	225	186	156
	Screw Speed	r/min	0-180

Clamping Unit	Clamping Force	KN	2500
	Opening Stroke	mm	540
	Space Between Tie-bars(H×V)	mm	580*580
	Max.mold Height	mm	580
	Min Mold Height	mm	220
	Ejector Stroke	mm	150
	Ejector Force	KN	70

Others	Pump Motor Power	kw	28
	Heater Power	kw	17.8
	Machine Dimensions (LxWxH)	m	5.91.62.0
	Machine Weight	t	8.3
	Hopper Capacity	kg	50
