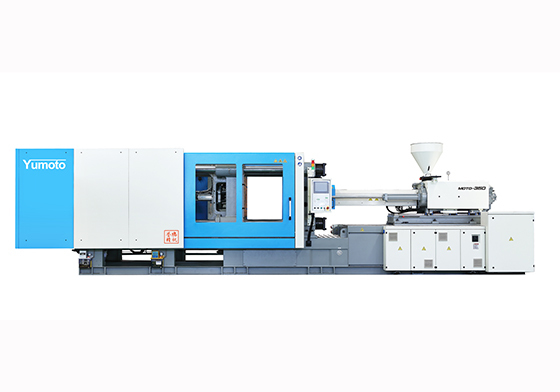

350 Ton Injection Molding Machine

- Clamping force (KN):3500

- Opening stroke(mm): 670

- Space between tie-bars(H×V)(mm):730*680

- Max.mold height(mm):700

- Min mold height (mm):280

Download PDF Contact Us

Applications:

Model No			MOTO-350
Description		Unit	2350
Injection Unit	Screw Diameter	mm	65	70	75
	Screw L/D Ratio	L/D	21.5	20	18.6
	Shot Size (Theoretical)	cm³	1161	1347	1546
	Shot Weight (Ps)	g	1057	1226	1407
	Injection Rate	g/s	298	345	397
	Injection Pressure	Mpa	202	179	152
	Screw Speed	r/min	0-180

Clamping Unit	Clamping Force	KN	3500
	Opening Stroke	mm	670
	Space Between Tie-bars(H×V)	mm	730*680
	Max.mold Height	mm	700
	Min Mold Height	mm	280
	Ejector Stroke	mm	180
	Ejector Force	KN	120

Others	Pump Motor Power	kw	40
	Heater Power	kw	32
	Machine Dimensions (LxWxH)	m	7.72.02.1
	Machine Weight	t	13.1
	Hopper Capacity	kg	50
