- Clamping force (KN):4200
- Opening stroke(mm): 920
- Space between tie bars(H×V)(mm):716*716
- Max. mold height(mm):900
- Min. mold height(mm):550

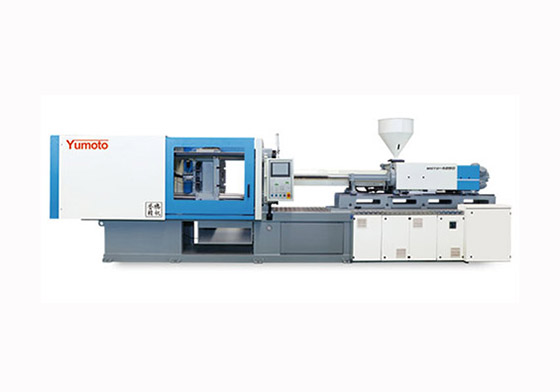

| Model No | WF420-5GALLON*4 | ||
| Description | Unit |
|
|
| Injection Unit | Screw diameter | mm | 100 |
| Screw L:D ratio | L/D | 25 | |
| Shot volume | cm3 | 3299 | |
| Shot weight (PET) | g | 3563 | |
| oz | 125.7 | ||
| Injection pressure | Bar | 1209 | |
| Injection rate | cm^3/s | 738 | |
| Max. screw speed | r/min | 86 | |
|
|
|||
| Clamping Unit | Clamping force | KN | 4200 |
| Opening stroke | mm | 920 | |
| Tie-bar diameter | mm | 135 | |
| Space between tie bars (H XV) | mm | 716x716 | |
| Max. mold height | mm | 900 | |
| Min. mold height | mm | 550 | |
| Ejector stroke | mm | 220 | |
| Ejector force | KN | 133 | |
|
|
|||
| Others | Pump motor power | kw | 37+55 |
| Heating capacity | kw | 55 | |
| Oil tank capacity | L | 450 | |
| Machine dimensions (L*W*H) | m | 8.7x2.2x2.3 | |
| Machine weight | t | 16 | |
