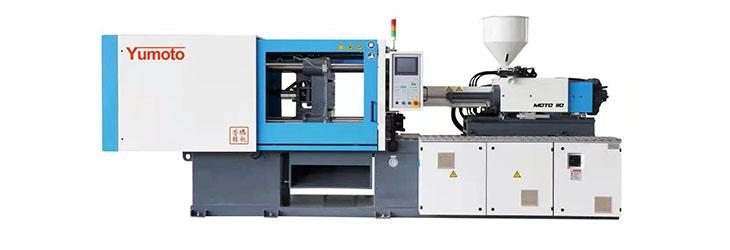

150 Ton Injection Molding Machine

- Clamping force (KN):1500

- Opening stroke(mm): 375

- Space between tie-bars(H×V)(mm):470*420

- Max.mold height(mm):460

- Min mold height (mm):120

Download PDF Contact Us

Applications:

Model No			MOTO-150
Description		Unit	480

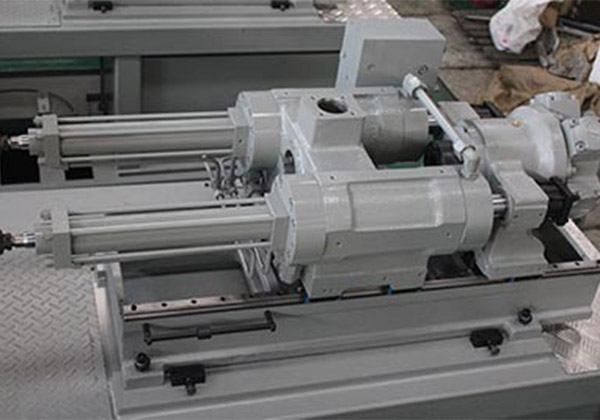

Injection Unit	Screw Diameter	mm	38	42	45
	Screw L/D Ratio	L/D	23.2	21	19.6
	Shot Size (Theoretical)	cm³	227	277	318
	Shot Weight (Ps)	g	206	252	289
	Injection Rate	g/s	107	151	184
	Injection Pressure	Mpa	233	190	166
	Screw Speed	r/min	0-250

Clamping Unit	Clamping Force	KN	1500
	Opening Stroke	mm	375
	Space Between Tie-bars(H×V)	mm	470*420
	Max.mold Height	mm	460
	Min Mold Heigh	mm	160
	Ejector Stroke	mm	120
	Ejector Force	KN	50

Others	Pump Motor Power	kw	15
	Heater Power	kw	10.1
	Machine Dimensions (LxWxH)	m	4.61.31.7
	Machine Weight	t	4.2
	Hopper Capacity	kg	25
