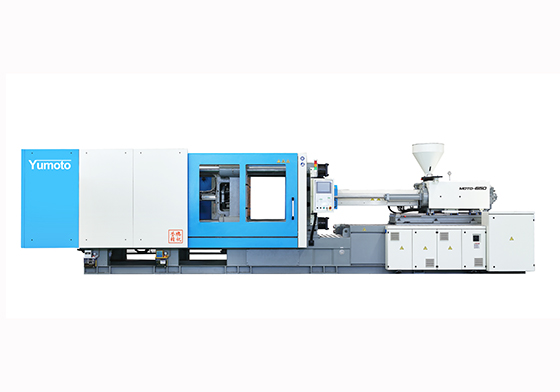

650 Ton Crate Box Injection Molding Machine

China is a world famous agricultural country, agriculture is the pillar industry of our country. In recent years， with thegradual improvement of china's aricultural industrial structure, the yield of fruits and vegetables increasedsignificant1y.In order to guarantee the transportation of fruits and vegetables，the market of fruit and vegetable basket hasdeveloped vigorous1y.In order to better meet the market demand, we carefully developed a new generation of fruit and vegetablebasket special injection molding machine. Yumoto new generation of special injection molding machine for fruit and vegetable basket adopts the latest domestictechno1ogy，optimizes the mechanism, makes the equipment more high-speed and efficient,more energy saving and environmental

Download PDF Contact Us

MOTO Technical Parameters

Parameter		UNIT	MOTO-650
International Size Rating			5060
Injection Unit	Screw Diameter	mm	110	115
	Screw L/D Ratio	L/D	21	21
	Injection Volume(Theoretical)	cm³	4276	4674
	Injection Weight(Ps)	g	3891	4253
	Injection Rate	g/s	737	783
	Injection Pressure	Mpa	118	127
	Screw Speed	r/min	0-134	0-115
Clamping Unit	Clamping Force	KN	6500
	Mold Opening Stroke	mm	920
	Space Between Tie Bars	mm	925x875
	Max.Mold Height	mm	950
	Min.Mold Height	mm	380
	Ejector Stroke	mm	280
	Ejector Tonnage	KN	180
Others	Oil Pump Motor Power	kw	36.5+38.8
	Heater Power	kw	41
	Machine Dimension(LxWxH)	m	9.8x2.5x2.5
	Machine Weight	t	28
	Hopper Capacity	kg	100

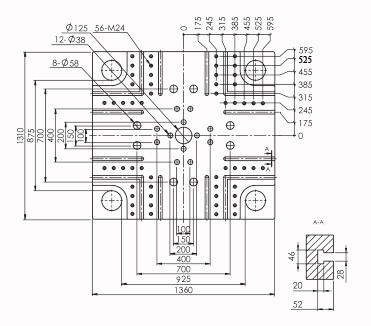

Mould Platen Dimensions

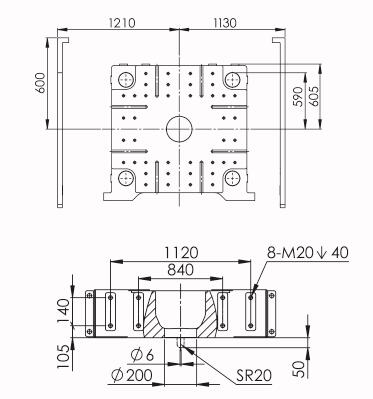

Mould Space Dimensions

Due to continual improvement, specifications are subject to change without prior notice.
