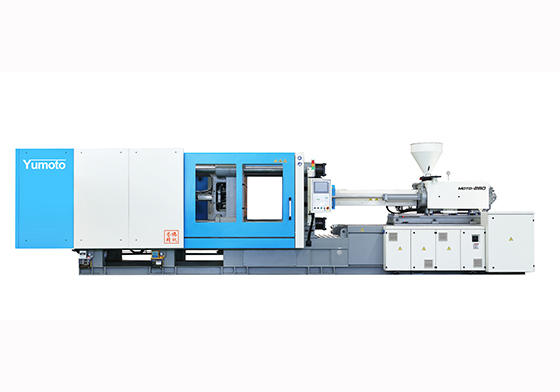

450 Ton Crate Box Injection Molding Machine

China is a world famous agricultural country, agriculture is the pillar industry of our country. In recent years， with thegradual improvement of china's aricultural industrial structure, the yield of fruits and vegetables increasedsignificant1y.In order to guarantee the transportation of fruits and vegetables，the market of fruit and vegetable basket hasdeveloped vigorous1y.In order to better meet the market demand, we carefully developed a new generation of fruit and vegetablebasket special injection molding machine. Yumoto new generation of special injection molding machine for fruit and vegetable basket adopts the latest domestictechno1ogy，optimizes the mechanism, makes the equipment more high-speed and efficient,more energy saving and environmental

Download PDF Contact Us

MOTO Technical Parameters

Parameter		UNIT	MOTO-450
International Size Rating			2980
Injection Unit	Screw Diameter	mm	80
	Screw L/D Ratio	L/D	19.7
	Injection Volume(Theoretical)	cm³	1885
	Injection Weight(Ps)	g	1715
	Injection Rate	g/s	379
	Injection Pressure	Mpa	158
	Screw Speed	r/min	0-140
Clamping Unit	Clamping Force	KN	4500
	Mold Opening Stroke	mm	780
	Space Between Tie Bars	mm	780x730
	Max.Mold Height	mm	750
	Min.Mold Height	mm	320
	Ejector Stroke	mm	200
	Ejector Tonnage	KN	125
Others	Oil Pump Motor Power	kw	55
	Heater Power	kw	36
	Machine Dimension(LxWxH)	m	8.2x2.0x2.2
	Machine Weight	t	16.3
	Hopper Capacity	kg	50

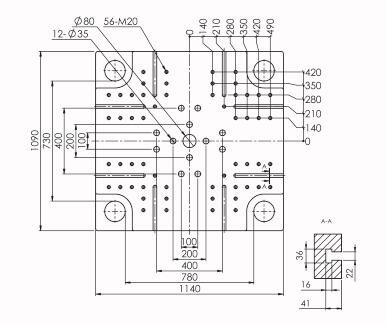

Mould Platen Dimensions

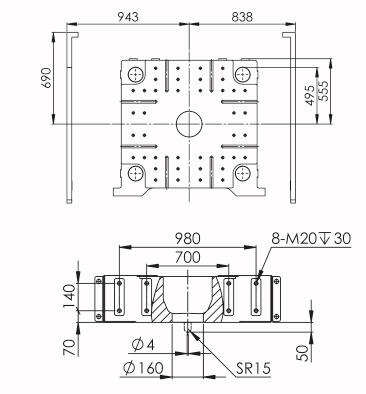

Mould Space Dimensions

Due to continual improvement, specifications are subject to change without prior notice.
