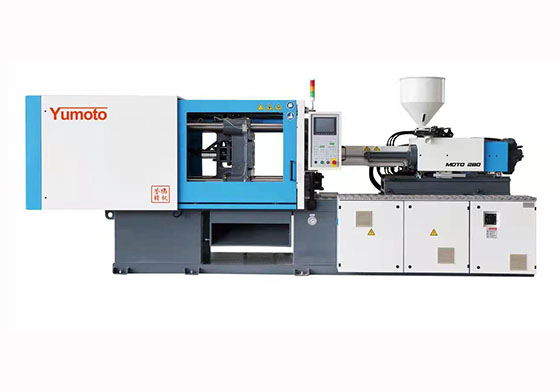

280 Ton Injection Molding Machine

- Clamping force (KN):2800

- Opening stroke(mm): 560

- Space between tie-bars(H×V)(mm):630*580

- Max.mold height(mm):600

- Min mold height (mm):220

Download PDF Contact Us

Applications:

Model No			MOTO-280
Description		Unit	1560
Injection Unit	Screw Diameter	mm	55	60	65
	Screw L/D Ratio	L/D	21.8	20	18.4
	Shot Size (Theoretical)	cm³	713	848	995
	Shot Weight (Ps)	g	649	772	906
	Injection Rate	g/s	220	262	307
	Injection Pressure	Mpa	219	184	156
	Screw Speed	r/min	0-210

Clamping Unit	Clamping Force	KN	2800
	Opening Stroke	mm	560
	Space Between Tie-bars(H×V)	mm	630*580
	Max.mold Height	mm	600
	Min Mold Height	mm	220
	Ejector Stroke	mm	160
	Ejector Force	KN	70

Others	Pump Motor Power	kw	37
	Heater Power	kw	22
	Machine Dimensions (LxWxH)	m	6.71.82.0
	Machine Weight	t	9.2
	Hopper Capacity	kg	50

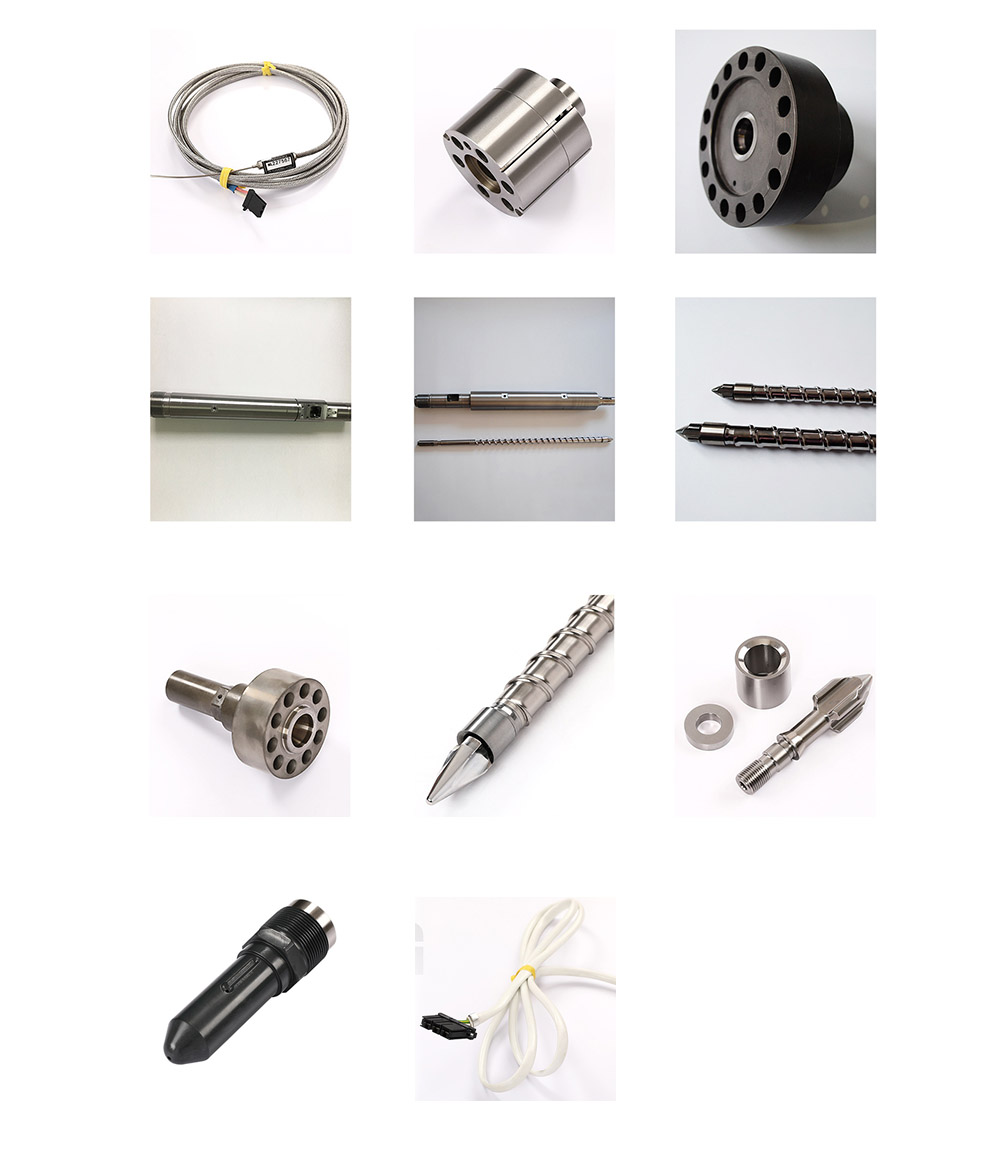

Accessories
